ANTI TRACKING TUBE

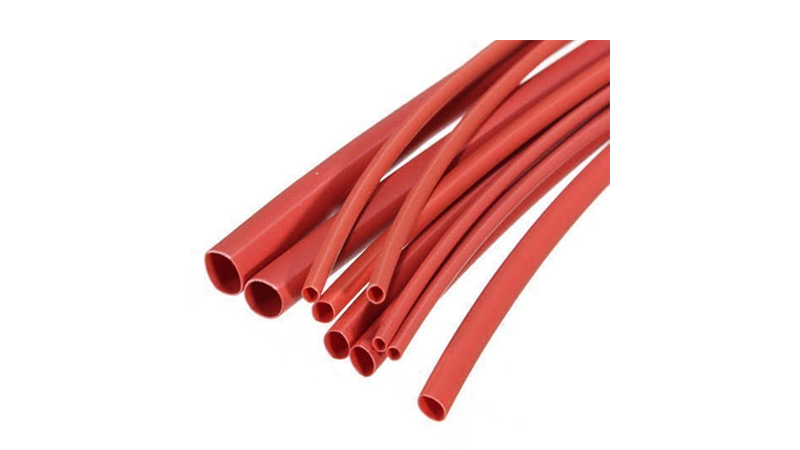

3M™ Heat Shrink Anti-Tracking Tubing (ATT Series)
3M™ Heat Shrink ATT Series Tubing is specifically engineered to perform under demanding outdoor environments and rigorous operational conditions. Designed for medium-voltage power cable end terminations and busbar insulation, ATT Series tubing is manufactured from a specially formulated, non-tracking polyolefin compound that offers exceptional electrical stability, weatherability, and physical strength.
Manufactured at 3M's state-of-the-art facility in Pune, it provides superior surface resistance to electrical tracking, surface erosion, and long-term environmental degradation.
Key Features & Benefits
- Exceptional Anti-Tracking Properties: Formulated to resist surface tracking, erosion, and electrical discharge under humid, polluted, or coastal outdoor conditions.
- UV & Weathering Resistant: Highly resistant to ultra-violet radiation, ozone, and severe weather exposure, ensuring a extended service life.
- Superior Mechanical Strength: Highly durable polyolefin construction offers high tensile strength and tear resistance to protect against external abrasion and mechanical stress.
- Versatile Application Range: Suitable for insulating busbars in switchgear, as well as protecting medium and high-voltage cable terminations up to 33 kV.
- Uniform Shrinkage & Fit: Shrinks evenly upon heating to form a tight, smooth, and void-free protective sleeve around irregular cable profiles and busbar joints.
Technical Specifications Summary
| Specification | Technical Details |
|---|---|
| Series / Model | 3M™ ATT Series (Anti-Tracking Tubing) |
| Material Base | Specially formulated cross-linked polyolefin |
| Voltage Rating | Up to 33 kV (Medium / High Voltage / HT) |
| Cable Size Compatibility | Up to 1200mm² |
| Conductor Material | Aluminium and Copper |
| Cable Insulation Types | XLPE and PVC |
| Primary Function | Anti-tracking insulation for terminations & busbars |
| Origin | 3M India Manufacturing Division, Pune |
Primary Applications
- Outdoor Cable Terminations: High-voltage cable end terminations exposed to sunlight, rain, airborne pollution, and salt spray.
- Busbar Insulation: Electrical insulation and protection for aluminum or copper busbars in switchgear assemblies, substations, and control panels.
- Retrofit & Maintenance Protection: Upgrading and restoring surface insulation on existing medium-voltage connections.
