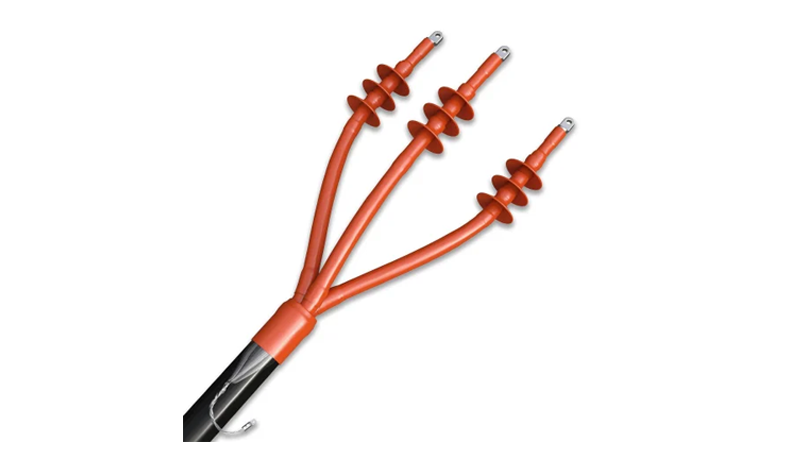

1 CORE / 3 CORE INDOOR/OUTDOOR CABLE TERMINATION KITS
3M™ Heat Shrink Cable Termination Kits are engineered to provide reliable insulation, tracking resistance, and environmental sealing for low, medium, and high-voltage power cables. Constructed from cross-linked polyolefin materials, these heat shrink terminations deliver long-term mechanical protection and electrical stress control for both indoor and outdoor cable connections.
Manufactured at 3M’s state-of-the-art facility in Pune, these kits offer high performance under harsh climatic and industrial operating conditions.
Key Features & Benefits
- Superior Electrical Insulation: Built with high dielectric strength polyolefin tubing that effectively manages electrical stress and prevents flashover or tracking.
- Weather & UV Resistance: Formulated with non-tracking, UV-stabilized materials designed for long service life in exposed outdoor and high-pollution environments.
- Moisture-Tight Environmental Seal: Features factory-applied hot-melt adhesive lining that melts during heating to form a 100% watertight seal along the cable sheath.
- Wide Cable Compatibility: Suitable for single-core and multi-core XLPE, PILC, and EPR insulated cables across low to high-voltage ratings (1.1 kV up to 33 kV and above).
- Streamlined Field Installation: Easy to position and shrink uniformly using a standard propane torch, reducing installation time and site labor requirements.
Technical Specifications Summary
| Feature | Technical Details |
|---|---|
| Technology | Heat-shrinkable cross-linked polyolefin |
| Voltage Range | Low Voltage (1.1 kV) to Medium/High Voltage (11 kV, 22 kV, 33 kV) |
| Cable Types | XLPE, PILC, EPR (Armored & Unarmored) |
| Cable System | Single-Core and 3-Core / 3.5-Core configurations |
| Environment | Indoor (Smooth/Shedless) & Outdoor (With Anti-Tracking Rain Sheds) |
| Origin | 3M India Manufacturing Facility, Pune |
Primary Applications
- Substation & Switchgear Connections: Indoor terminations for connecting power distribution cables to switchgear, transformers, and breaker panels.
- Overhead Line Transitions: Outdoor terminations equipped with rain sheds for connecting underground cables to overhead transmission lines.
- Industrial Infrastructure: Power cable connections in commercial, industrial, renewable energy, and utility distribution networks.
